Rear Stabilizer Bar: Removal

Raise and support rear of vehicle with safety stands. Remove wheels. Detach connecting rod from stabilizer on both sides of vehicle. Remove stabilizer bar holding brackets. Loosen exhaust pipe mounts (rubber rings) and lower slightly. Remove stabilizer bar in a downward direction.

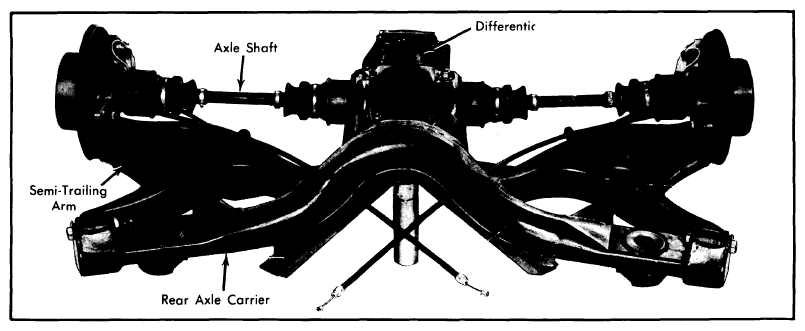

Fig 1: Typical Mercedes-Benz Rear Suspension
G09358143Courtesy of MERCEDES-BENZ USA
