Instrument Cluster

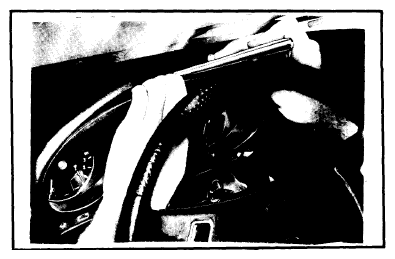

Instrument cluster is held in a recess by a rubber section. Remove instrument plate glass, prying out and lifting up, using a non-metalic device to prevent damage to the glass.
Remove the speedometer shaft from the cable strap under the left floormat. Pull instrument cluster out, loosen speedometer shaft, electrical connections and oil pressure line. Remove the instrument cluster sideways and to the right. To install, reverse removal procedure.
