Seal Board Upper Removal/Installation

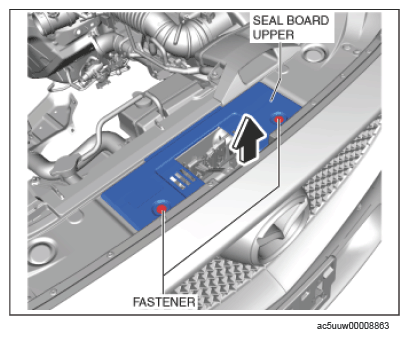

  1. Remove the fasteners.
    G15641755Courtesy of MAZDA MOTORS CORP.
  2. Remove the seal board upper in the direction of the arrow shown in the figure.
  3. Install in the reverse order of removal.
