Rear Bumper Removal/Installation

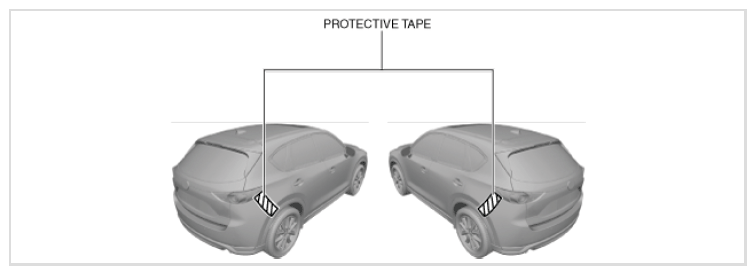

  1. Affix the protective tape to the position shown in the figure to prevent scratches and damage.
    G16332858Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the rear combination right. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
  4. Remove the rear splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION .)

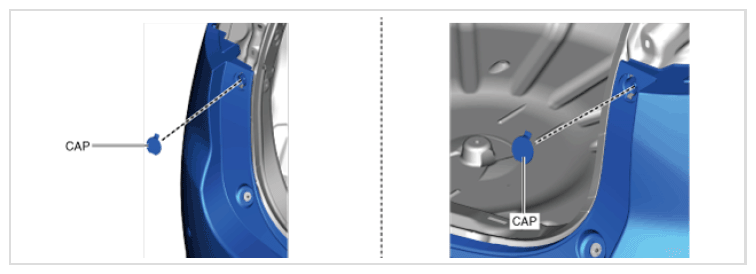

  5. Remove the caps.
    G16332859Courtesy of MAZDA MOTORS CORP.

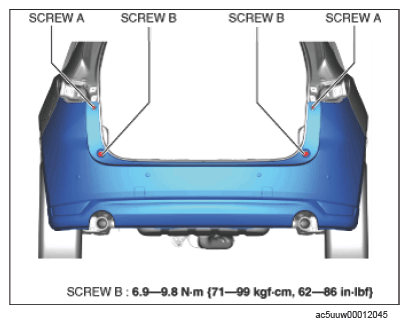

  6. Remove screws A and B.
    Fig 1: Rear Bumper Screws With Torque Specification
    G15641743Courtesy of MAZDA MOTORS CORP.

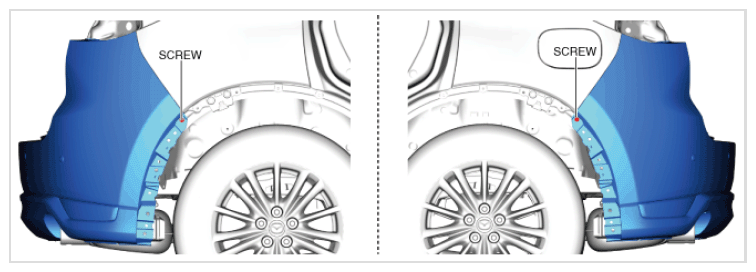

  7. Remove the screws.
    G16332861Courtesy of MAZDA MOTORS CORP.

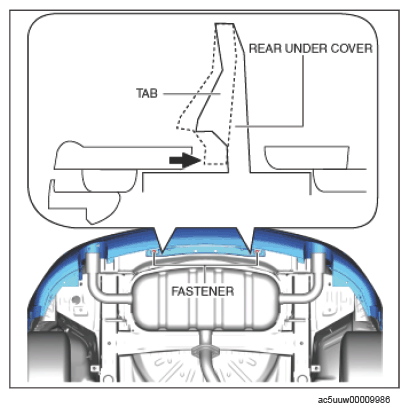

  8. Remove the fasteners.
    G15641745Courtesy of MAZDA MOTORS CORP.
  9. Press the tab of rear under cover and remove it. (with rear under cover)

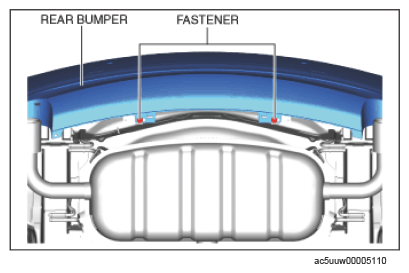

  10. Remove the fasteners.
    G15641746Courtesy of MAZDA MOTORS CORP.

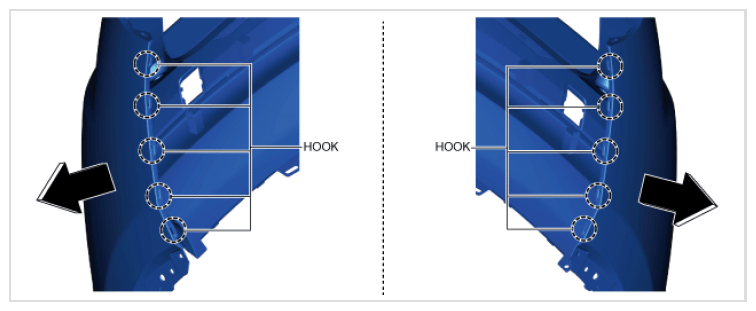

  11. Detach the rear bumper from the rear bumper slider while holding the rear end of the rear bumper, moving it in the direction of the arrows shown in the figure below, and detaching the hooks.
    G16332864Courtesy of MAZDA MOTORS CORP.

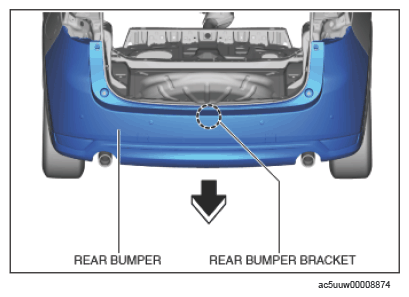

  12. Move the rear bumper in the direction of the arrow shown in the figure below and detach it from rear bumper bracket.
    G15641748Courtesy of MAZDA MOTORS CORP.

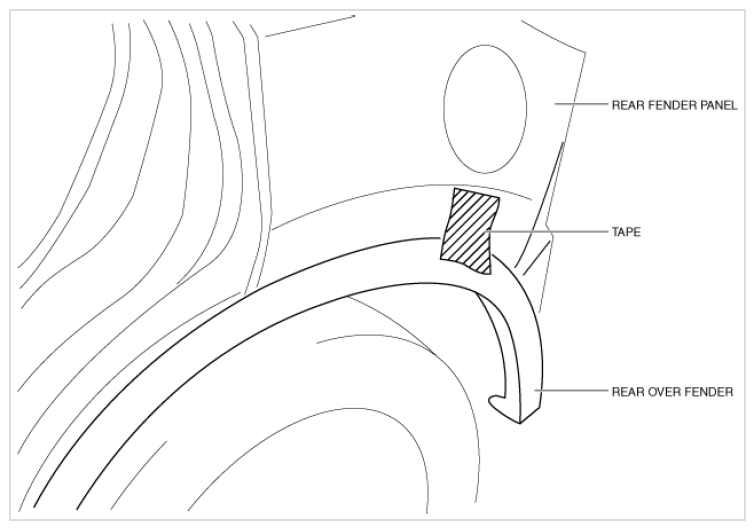

    WARNING:
    • After removing rear bumper, it may hit the rear over fender and cause a damage and/or injury. Perform the following procedure to prevent the rear over fender from being damaged.
      • Fix the rear over fender and rear fender panel with protective tape.
    G16332866Courtesy of MAZDA MOTORS CORP.

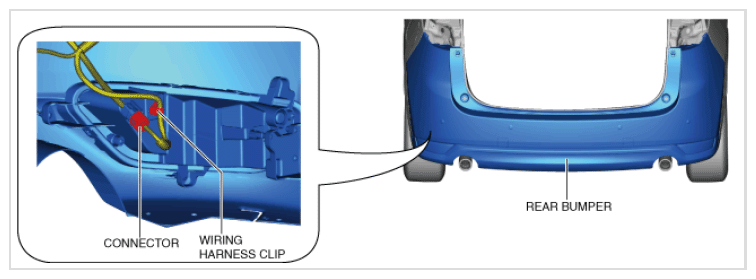

  13. Disconnect the connector. (with rear ultrasonic sensor)
    G16332867Courtesy of MAZDA MOTORS CORP.
  14. Remove the wiring harness clip. (with rear ultrasonic sensor)
  15. Remove the rear bumper.
  16. Install in the reverse order of removal.
  17. If the rear bumper is replaced, perform the blind spot monitoring (BSM) radar test. (with blind spot monitoring (BSM) system) (See BLIND SPOT MONITORING (BSM) RADAR TEST .)
    CAUTION:
    • If the rear bumper installation position is changed or individual differences (coating film/thickness) occur, the blind spot monitoring (BSM) control module radar angle will deviate which could result in the module not detecting a vehicle approaching from the rear correctly. If the rear bumper is replaced, perform the blind spot monitoring (BSM) radar test.
