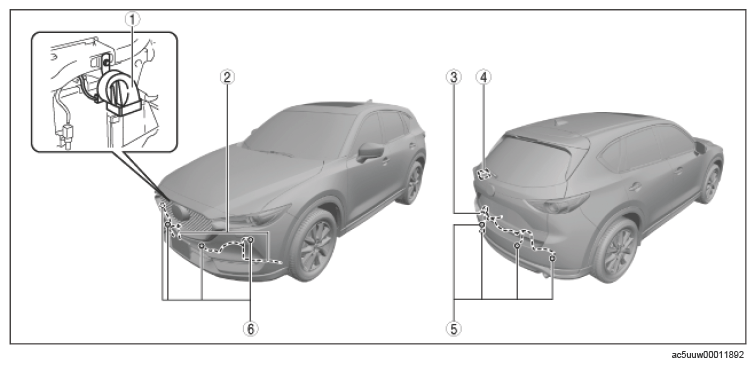

Instrumentation/Driver Info. Location Index: Exterior
INSTRUMENTATION/DRIVER INFO. COMPONENT OPERATIONS
| Component no | Refer to |
|---|---|
| 1 | Horn (See HORN REMOVAL/INSTALLATION .) (See HORN INSPECTION .) |
| 2 | Front ultrasonic sensor short-cord (With parking sensor system) (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION .) (See FRONT ULTRASONIC SENSOR SHORT-CORD INSPECTION .) |
| 3 | Rear ultrasonic sensor short-cord (With parking sensor system) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION .) (See REAR ULTRASONIC SENSOR SHORT-CORD INSPECTION .) |
| 4 | Rear parking sensor buzzer (With parking sensor system) (See REAR PARKING SENSOR BUZZER REMOVAL/INSTALLATION .) (See REAR PARKING SENSOR BUZZER INSPECTION .) |
| 5 | Rear ultrasonic sensor (With parking sensor system) (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION .) (See REAR ULTRASONIC SENSOR INSPECTION .) |
| 6 | Front ultrasonic sensor (With parking sensor system) (See FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION .) (See FRONT ULTRASONIC SENSOR INSPECTION .) |
