Front Parking Sensor Buzzer Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
  3. Partially peel back the seaming welt.
    G13114999Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.

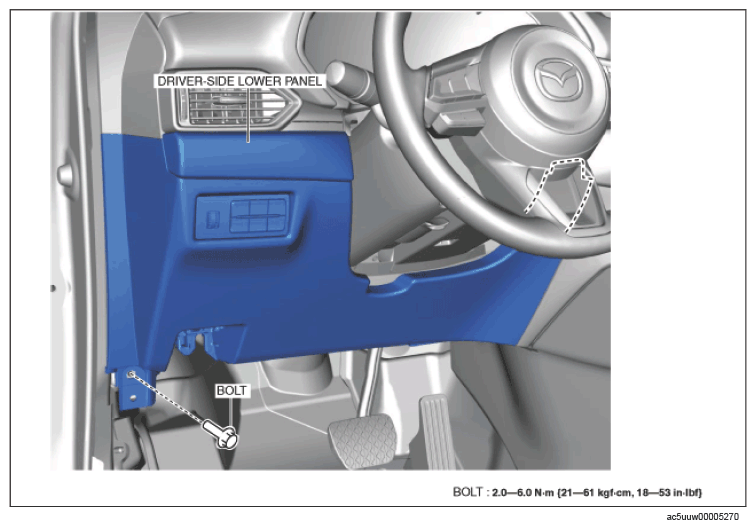

    Fig 1: Driver-Side Lower Panel Bolt With Torque Specification
    G15678075Courtesy of MAZDA MOTORS CORP.
  5. Pull the driver-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure below, and remove it while detaching the clips, hook, tab, and guide.
    G15678076Courtesy of MAZDA MOTORS CORP.
  6. Set the driver-side lower panel aside.
  7. Disconnect the connector.
    G15678077Courtesy of MAZDA MOTORS CORP.
  8. While pressing the front parking sensor buzzer tabs in the direction of arrows (1) shown in the figure below, pull the front parking sensor buzzer in the direction of arrow (2) to detach the front parking sensor buzzer tabs from the driver-side lower panel.
    G15678078Courtesy of MAZDA MOTORS CORP.
  9. Remove the front parking sensor buzzer.
  10. Install in the reverse order of removal.
