Steering Wheel And Column Removal [Without Electric Tilt Telescopic Unit]

D-code

WARNING:

If the steering mechanism is turned from lock to lock continuously or the steering rack terminal limit is reached repeatedly, such high-load steering action increases the temperature of the steering column (to approx.85°C {185°F}), causing severe burns. Be careful when handling the steering column.

CAUTION:

When handling the steering column, do not release the adjuster lever lock except when it is securely attached to the dashboard member. Releasing the adjuster lever lock when it is not assembled may damage the steering column and other parts.
If the intermediate shaft is connected to the steering gear (pinion) before installing the steering column to the dashboard member, the weight of the steering column could cause damage to the intermediate shaft slider/bush/yoke. Always perform the procedure according to the appropriate service information(s) .
A new steering column is shipped with it set to the position for delivery. Maintain this condition until the steering column is completely installed to the dashboard member so as to avoid damage during transportation and installation.
When removing/installing the steering column, keep the wiring harness away from the steering column installation area so as to prevent the steering column from being caught in the wiring harness and damaged.

NOTE:

When installing the replacement part, do not rotate the steering shaft until the installation is completed.

Remove the cover assembly. (right side) (See COWL GRILLE REMOVAL/INSTALLATION .)
Disconnect the negative lead-acid battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Driver side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Driver side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Driver side decoration panel component (See DECORATION PANEL REMOVAL/INSTALLATION .)
4. Passenger side decoration panel component (See DECORATION PANEL REMOVAL/INSTALLATION .)
5. Driver side lower panel component (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION (L.H.D). .)
6. Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION .)
7. Driver side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION .)
8. Upper column cover (See UPPER COLUMN COVER REMOVAL/INSTALLATION .)

Remove using the procedure shown in the figure.

CAUTION:

Do not remove the steering wheel using a hammer so as to prevent damaging the steering column.

NOTE:

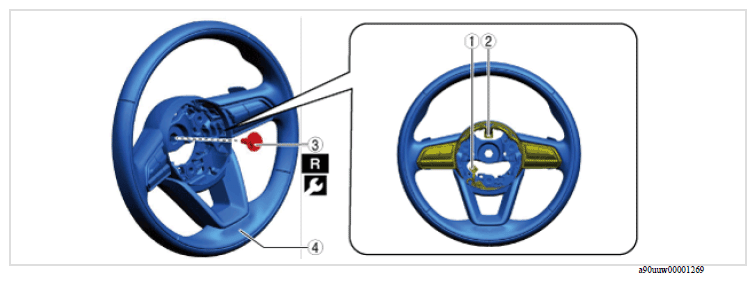

Fig 1: Steering Wheel Components Location With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Procedure	Part name	Applicable condition
1	Heated steering wheel control unit	Continuous	-	-
2	Steering switch connector	Continuous	-	-
3	Lockbolt	Continuous	Replacement part	47.5 N.m {4.85 kgf.m, 35.05 ft.lbf}
4	Steering wheel component	Continuous	-	-

Remove the following parts:
1. Lower column cover (See LOWER COLUMN COVER REMOVAL/INSTALLATION .)
2. Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION .)
3. Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION [L.H.D.] .)
4. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [L.H.D.] .)

Remove using the procedure shown in the figure.

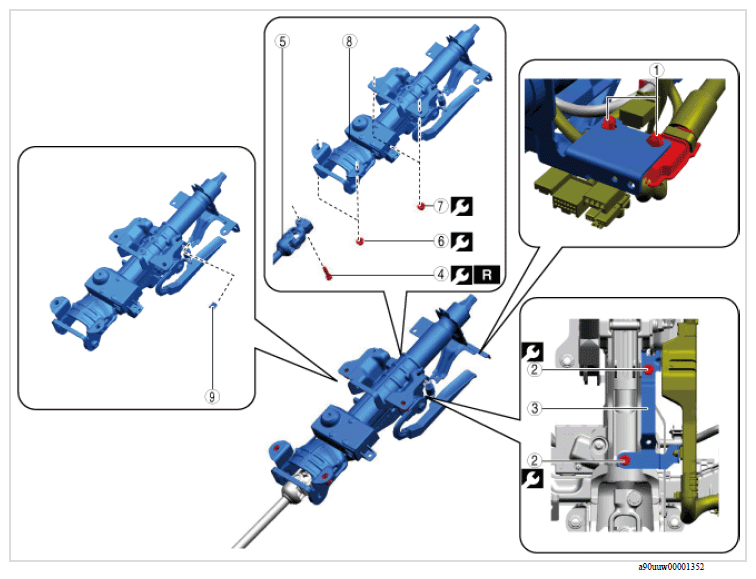

Fig 2: Steering Column Components Location With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Procedure	Part name	Applicable condition
1	Wiring harness clip	Continuous	-	-
2	Bolt	Continuous	-	9.5 N.m {95 kgf.cm, 82 in.lbf}
3	Bracket	Continuous	-	-
4	Joint bolt	Continuous	Replacement part	29 N.m {2.95 kgf.m, 21.4 ft.lbf}
5	Intermediate shaft component	Continuous	-	-
6	Nut	Continuous	-	20.5 N.m {2.1 kgf.m, 15.1 ft.lbf}
7	Nut	Continuous	-	20.5 N.m {2.1 kgf.m, 15.1 ft.lbf}
8	Steering column component	Continuous	-	-
9	Spring nut	Continuous	-	-
