Remove Joint Hose: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

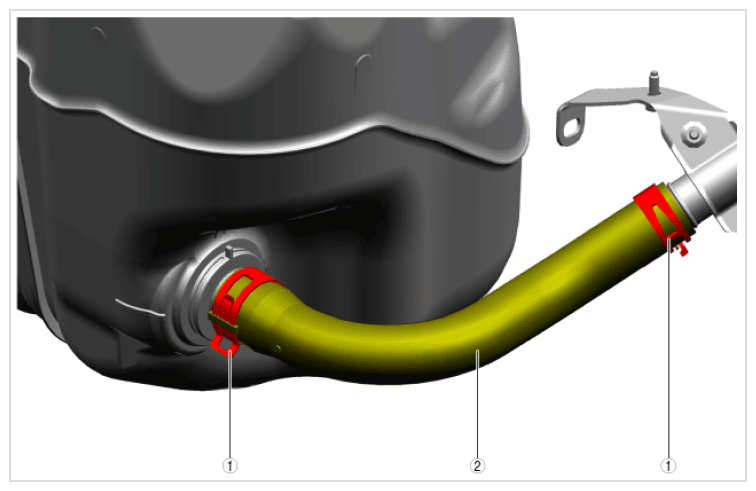

G16704257Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Hose clamp
(See JOINT HOSE AND HOSE CLAMP INSTALLATION NOTE )
2 Joint hose
(See JOINT HOSE AND HOSE CLAMP INSTALLATION NOTE )
