Remove Insulator (Front No. 2): Notes

WARNING: This page is about a different variant/trim than selected.

Remove in the order indicated in the table.

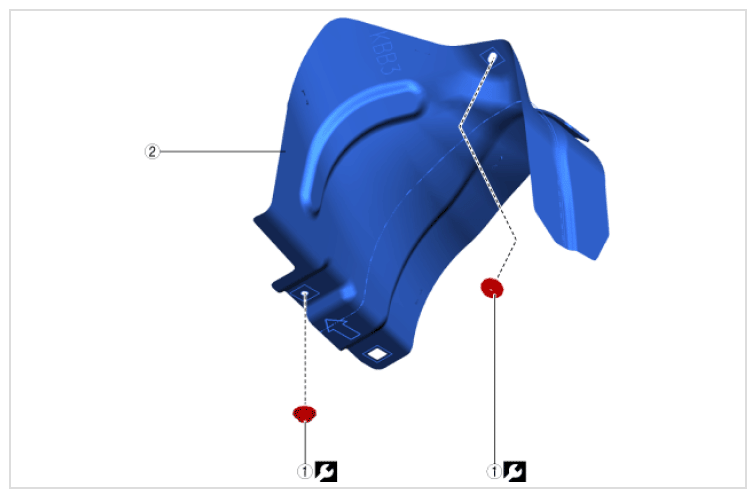

Fig 1: Front No. 2 Insulator And Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Nut (See Insulator (front No. 2) and nut installation note )	9.5 N.m {95 kgf.cm, 82 in.lb}
2	Insulator (front No. 2) (See Insulator (front No. 2) and nut installation note )	-
