Nut and bolt installation note

WARNING: This page is about a different variant/trim than selected.

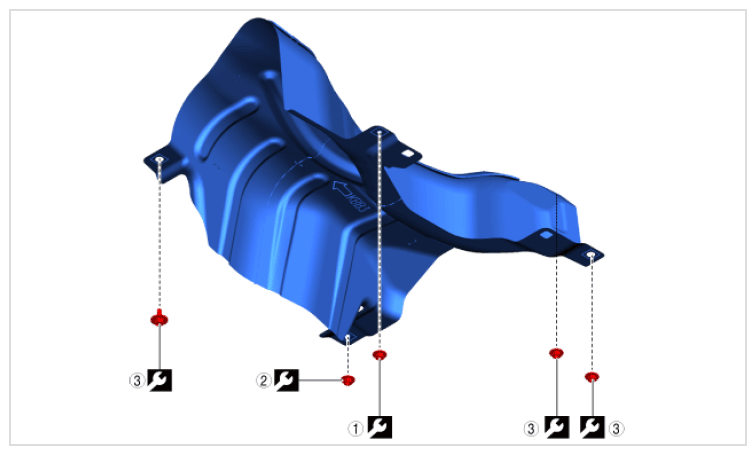

Fig 1: Front No. 1 Insulator Bolts And Nuts Tightening Sequence With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Symbol	Content
(1) (2)...	Servicing procedure
	9.5 N.m {95 kgf.cm, 82 in.lb}
