Joint hose installation note
WARNING: This page is about a different variant/trim than selected.

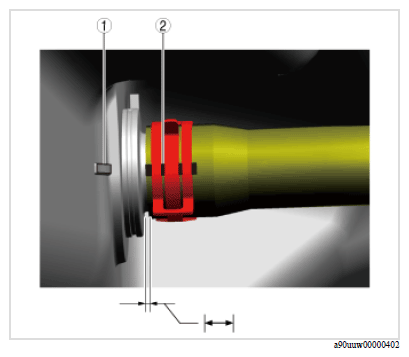

- Install the joint hose as shown in the figure below.
 Courtesy of MAZDA MOTORS CORP.
|
SYMBOL AND CONTENT DESCRIPTION
| Symbol |
Content |
| 1 |
Pipe marking |
| 2 |
Hose marking |
 |
0-3 mm {0-0.1 in} |
