Water heater component removal note

WARNING: This page is about a different variant/trim than selected.

Disconnect the connectors.

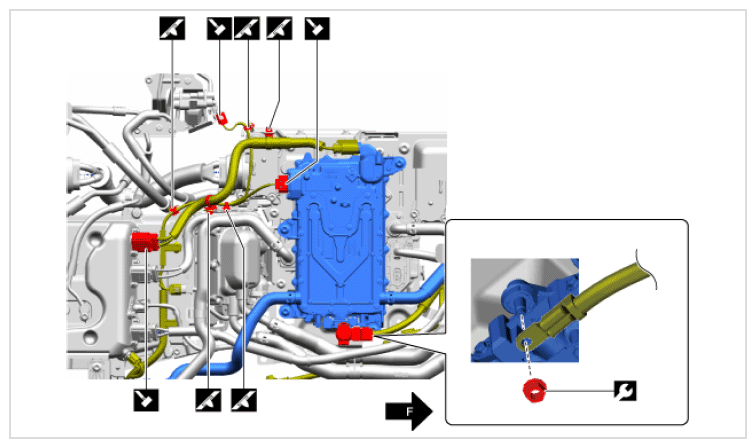

Fig 1: Water Heater Connector Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the clips.

Remove the nut.

TIGHTENING TORQUE SPECIFICATION

Symbol	Content
	12.5 N.m {125 kgf.cm, 108 in.lb}

Support the DC-DC converter using a commercially-available garage jack.

Courtesy of MAZDA MOTORS CORP.

Remove the bolts.

Fig 2: DC-DC Converter Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Symbol	Content
	9 N.m {93 kgf.cm, 81 in.lb}

Disconnect the DC-DC converter.
Disconnect the high voltage battery cable (inverter side) as shown in the figure below.

Fig 3: High Voltage Battery Cable Components Location With Torque Specification (Inverter Side)

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Symbol	Content
(1) (2)...	Servicing procedure
	11 N.m {110 kgf.cm, 95 in.lb}
