Disconnect DC-DC Converter (e-SKYACTIV PHEV): Notes
WARNING: This page is about a different variant/trim than selected.

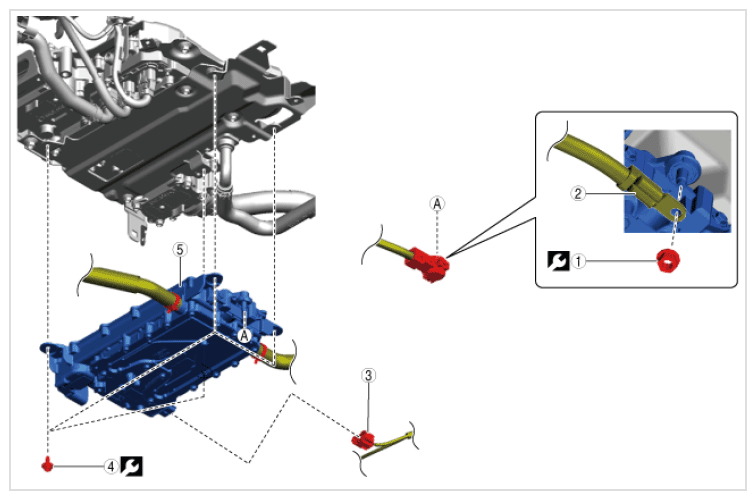

- Disconnect in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Nut | 12.5 N.m {127 kgf.cm, 111 in.lb} |
| 2 | Wiring harness | - |
| 3 | Connector | - |
| 4 | Bolt | 9.5 N.m {97 kgf.cm, 84 in.lb} |
| 5 | DC-DC converter (See DC-DC converter disconnection note ) |
- |
