Remove purge valve: Notes
WARNING: This page is about a different variant/trim than selected.

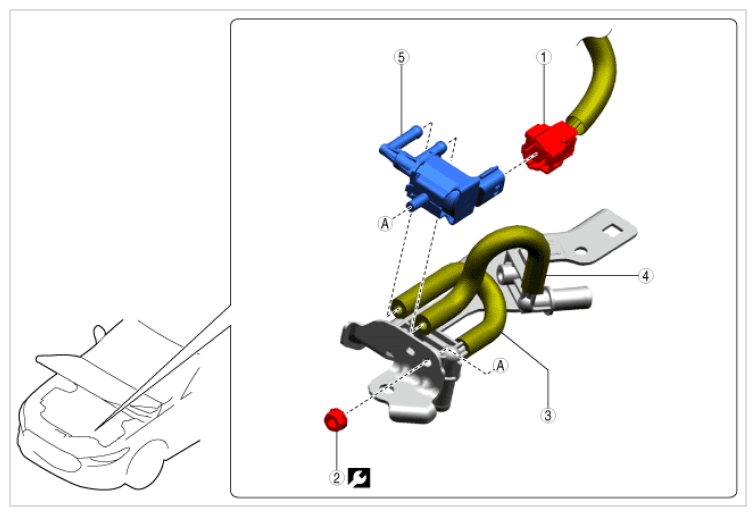

- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Connector | - |
| 2 | Nut | 9.5 N.m {97 kgf.cm, 84 in.lb} |
| 3 | Evaporative hose No. 1 (See EVAPORATION HOSE CONNECTION NOTE ) |
- |
| 4 | Evaporative hose No. 2 (See EVAPORATION HOSE CONNECTION NOTE ) |
- |
| 5 | Purge solenoid valve | - |
