Remove Windshield Wiper Motor And Link: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Always apply protective tape to the windshield edge. If the windshield wiper motor and link contacts the windshield, it could damage the windshield.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content

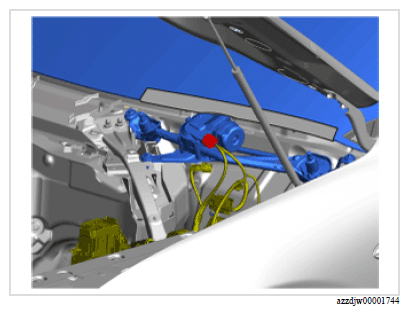

	Protective tape attachment positions

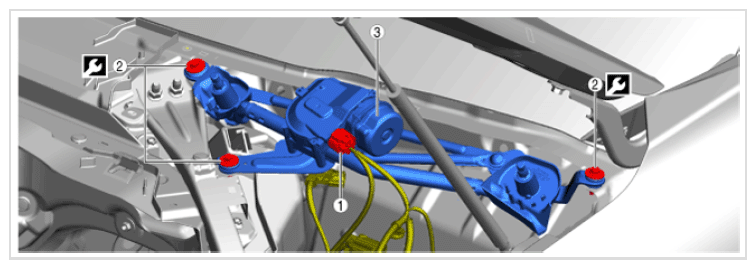

Fig 1: Windshield Wiper Motor And Link, Connector And Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Connector	-
2	Bolt (See Bolt installation note )	8.0 N.m {82 kgf.cm, 71 in.lb}
3	Windshield wiper motor and link	-
