Remove Service Plug: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

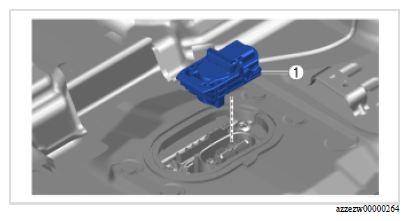

G16704053Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Service plug
(See SERVICE PLUG REMOVAL NOTE )
(See SERVICE PLUG INSTALLATION NOTE )
