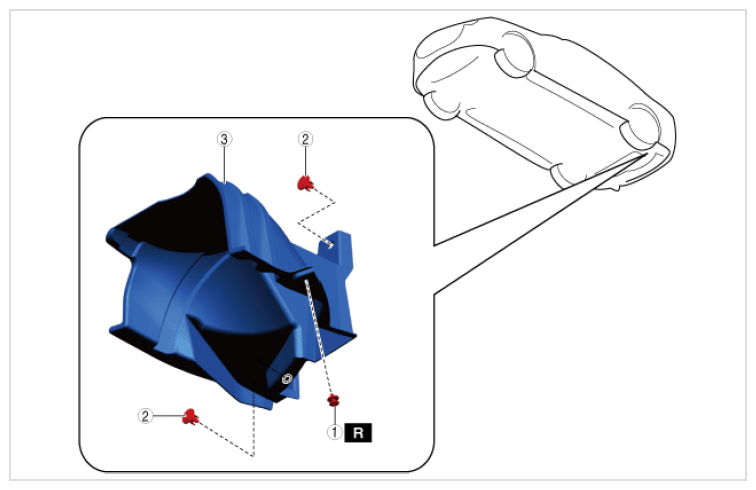

Remove Rear Bumper Bracket (LH) (With Rear Bumper Bracket (LH)): Notes
WARNING: This page is about a different variant/trim than selected.
- Remove in the order indicated in the table.
PART NAME DESCRIPTION
| Step | Part name | |
|---|---|---|
| 1 | Rivet (See Rivet removal note ) |
Replacement part |
| 2 | Fastener | - |
| 3 | Rear bumper bracket (LH) | - |
