Insulator (rear) installation note
WARNING: This page is about a different variant/trim than selected.

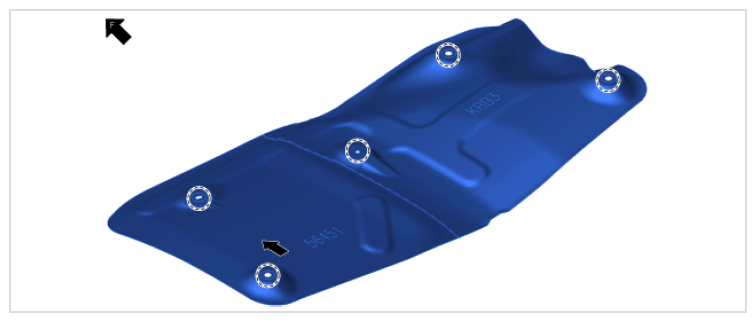

- Point the convex side of the installation surface towards the upper side of the vehicle and point the arrow towards the vehicle front.
 Courtesy of MAZDA MOTORS CORP.
|
- Install the insulator (rear) as shown in the figure below.
 Courtesy of MAZDA MOTORS CORP.
|
SYMBOL AND CONTENT DESCRIPTION
| Symbol |
Content |
| (1) (2)... |
Servicing procedure |
