Nut and bolt installation note
WARNING: This page is about a different variant/trim than selected.
- Install the nuts and the bolts as shown in the figure below.

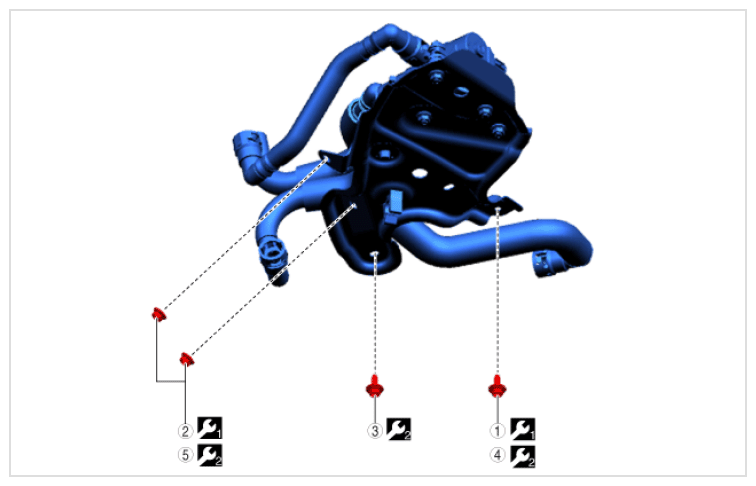

Fig 1: Canister Ventilation Valve Component Nuts And Bolts Tightening Sequence With Torque Specification
TIGHTENING TORQUE SPECIFICATION
| Symbol | Content |
|---|---|
| (1) (2)... | Servicing procedure |
| Temporarily tighten | |
| 11 N.m {110 kgf.cm, 95 in.lb} |
