Quick release connector (emission system) No. 3 connection note
WARNING: This page is about a different variant/trim than selected.
NOTE:
- If the quick release connector O-ring is damaged or it has slipped, replace the evaporative hose.
- Inspect the evaporative hose and the sealing surface on the opposite side for damage or deformation.
- If there is any malfunction, perform replacement.

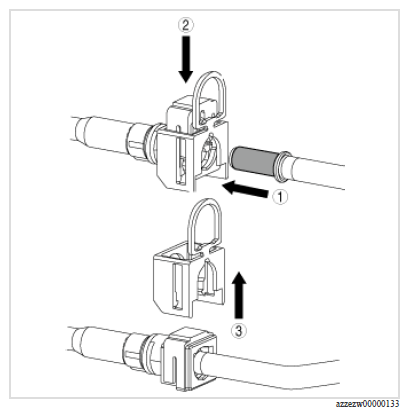

- Install the quick release connector in the order shown in the figure below.
SYMBOL AND CONTENT DESCRIPTION
| Symbol | Content |
|---|---|
| (1) (2)... | Servicing procedure |
| Engine oil application area |
Replacing evaporative hose
- Press the evaporative hose into the opposite pipe parallel until a click sound is heard and connect.
- Press the retainer down with your fingers.
- If the retainer cannot be pressed down or the checker tab cannot be removed, press the quick release connector further into the opposite pipe.
- Pull out the checker tab by hand.
- Do not use pliers.
Reassembling evaporative hose (not replacing evaporative hose)
- Press the evaporative hose into the opposite pipe parallel until a click sound is heard and connect.
- Press the retainer down with your fingers.
- If the retainer cannot be pressed down, press the quick release connector further into the opposite pipe.
- Press and pull the quick release connector forward/back several times and verify that it is connected securely.
