Airflow inspection
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Perform the procedure with the fuel tank shut valve removed. (See FUEL TANK SHUT VALVE REMOVAL/INSTALLATION [PYUL] )
- Inspect the airflow condition between the ports under the following conditions.COMPONENT OPERATIONS

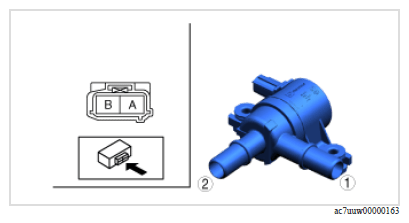

Component no Refer to 1 Port A 2 Port B MEASUREMENT CONDITION DESCRIPTIONMeasurement condition Port A to B airflow Voltage is not applied between terminals A and B Yes Voltage is applied between terminals A and B No - If not as indicated in the table, replace the fuel tank shut valve. (See FUEL TANK SHUT VALVE REMOVAL/INSTALLATION [PYUL] )
