Heater hose connection note

WARNING: This page is about a different variant/trim than selected.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
	2-6 mm {0.1-0.2 in}

Courtesy of MAZDA MOTORS CORP.

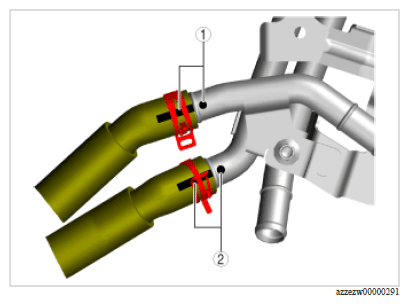

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
1	White Marking
2	Yellow marking

Courtesy of MAZDA MOTORS CORP.

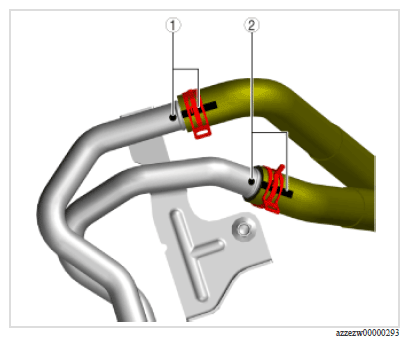

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
1	Orange marking
2	Green marking
