Joint hose and hose clamp installation note

WARNING: This page is about a different variant/trim than selected.

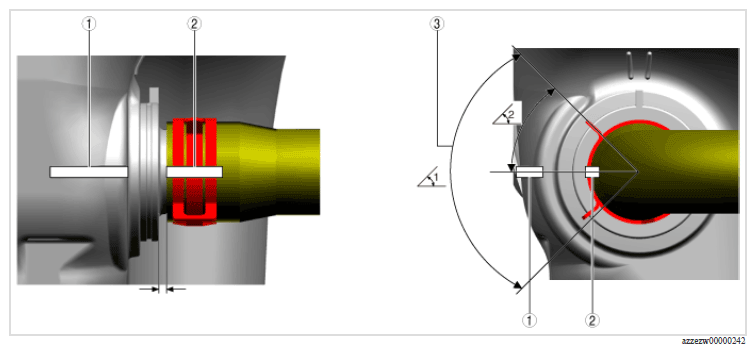

  1. Align the joint hose markings with the pipe markings as shown in the figure below and assemble.
    G16703975Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    1 Pipe marking
    2 Joint hose marking
    3 Hose clamp assembly range
    3 mm {0.1 in}
    90°
    45°
  2. Align the joint hose marking with the fuel-filler pipe marking as shown in the figure below and assemble.
    G16703976Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    1 Marking of fuel-filler pipe
    2 Joint hose marking
    3 Hose clamp assembly range
    3 mm {0.1 in}
    90°
    45°
