Connect manifold gauge to the vacuum pump/refrigerant tank
WARNING: This page is about a different variant/trim than selected.

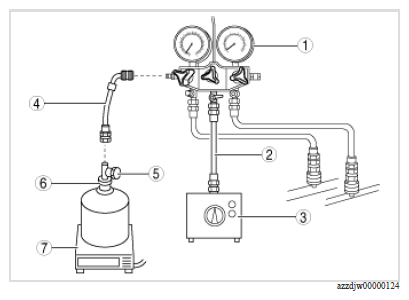

- Connect a manifold gauge to the vacuum pump/refrigerant tank.
 Courtesy of MAZDA MOTORS CORP.
|
COMPONENT OPERATIONS
| Component no |
Refer to |
| 1 |
Manifold gauge |
| 2 |
Vacuum pumps hose |
| 3 |
Vacuum pump |
| 4 |
Charging hose |
| 5 |
Valve |
| 6 |
Refrigerant tank |
| 7 |
Measuring instrument |
