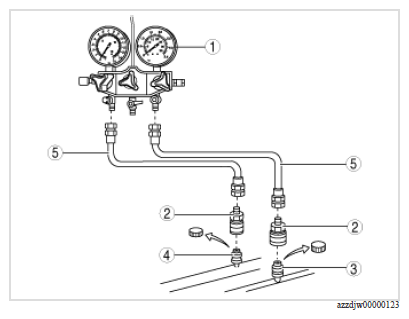

Connect manifold gauge to system piping
WARNING: This page is about a different variant/trim than selected.
- Close all the valves of the manifold gauge.
- Connect a manifold gauge to the system piping.
 Courtesy of MAZDA MOTORS CORP.
|
COMPONENT OPERATIONS
| Component no |
Refer to |
| 1 |
Manifold gauge |
| 2 |
Quick coupler |
| 3 |
High-pressure line charging valve |
| 4 |
Low-pressure line charging valve |
| 5 |
Charging hose |
