Remove Rear Splash Shield (LH)
WARNING: This page is about a different variant/trim than selected.

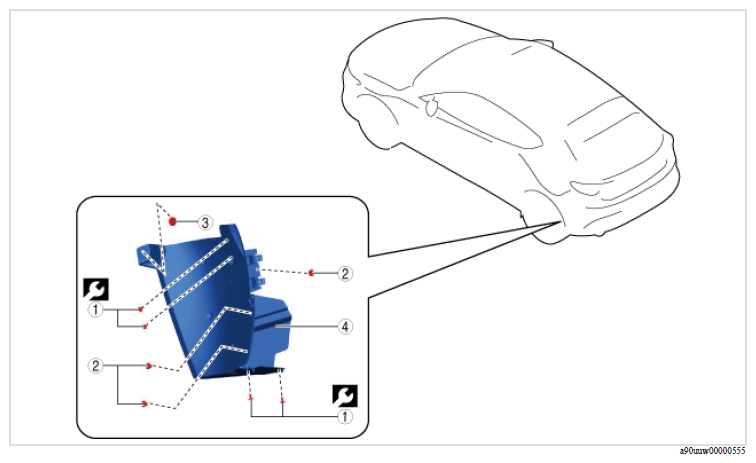

- Remove using the procedure shown in the figure below.
- the figure below shows the left side (same as right side).
Courtesy of MAZDA MOTORS CORP. TIGHTENING TORQUE SPECIFICATION
| Step |
Part name |
 |
| 1 |
Screw |
2 N.m {20 kgf.cm, 17 in.lb} |
| 2 |
Fastener |
- |
| 3 |
Cap nut |
- |
| 4 |
Rear Splash Shield |
- |
