Remove Insulator (Rear): Notes

WARNING: This page is about a different variant/trim than selected.

Remove in the order indicated in the table.

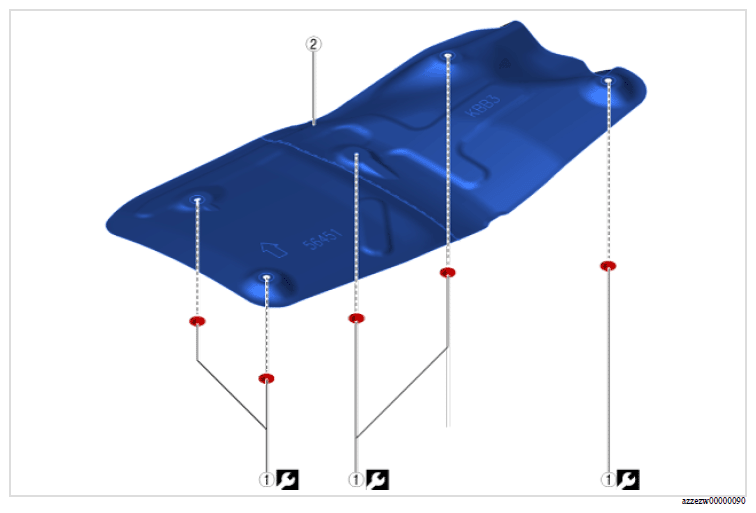

Fig 1: Rear Insulator And Nuts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Nut	9.5 N.m {95 kgf.cm, 82 in.lb}
2	Insulator (rear) (See INSULATOR (REAR) INSTALLATION NOTE )	-
