Remove Evaporative Isolation Valve Hose: Notes

WARNING: This page is about a different variant/trim than selected.

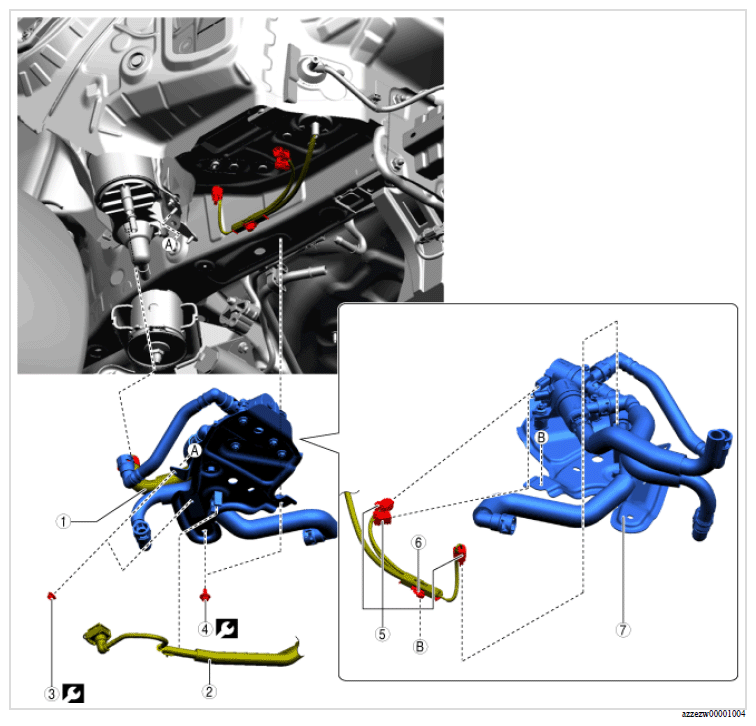

Fig 1: Evaporative Isolation Valve Hose Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Evaporative isolation valve hose (See Evaporative isolation valve hose connection note )	-
2	Evaporative hose No. 1	-
3	Nut (See Nut and bolt installation note )	11 N.m {110 kgf.cm, 95 in.lb}
4	Bolt (See Nut and bolt installation note )	11 N.m {110 kgf.cm, 95 in.lb}
5	Connector	-
6	Wiring harness clip	-
7	Canister ventilation valve component	-

Courtesy of MAZDA MOTORS CORP.

PART NAME DESCRIPTION

Step	Part name
1	Evaporative isolation valve hose clip (See Evaporative isolation valve hose connection note )
2	Evaporative isolation valve hose (See Evaporative isolation valve hose connection note )
