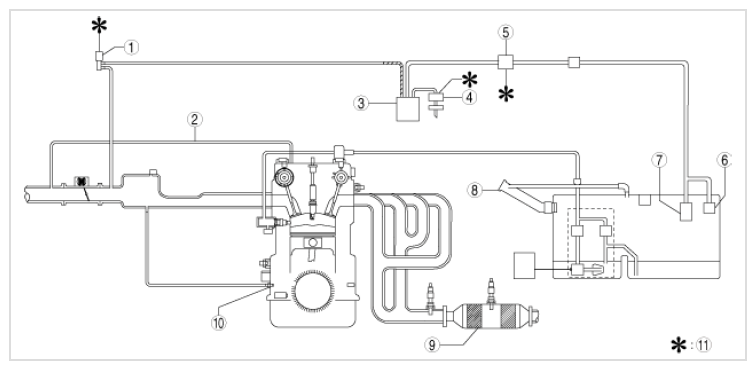

Emission System Diagram
WARNING: This page is about a different variant/trim than selected.
 Courtesy of MAZDA MOTORS CORP.
|
COMPONENT OPERATIONS
| Component no |
Refer to |
| 1 |
Purge solenoid valve |
| 2 |
Ventilation hose |
| 3 |
Charcoal canister |
| 4 |
Evaporative isolation valve |
| 5 |
Fuel tank shut valve |
| 6 |
Rollover valve |
| 7 |
Fuel shut-off valve |
| 8 |
Fuel-filler cap |
| 9 |
TWC |
| 10 |
PCV valve |
| 11 |
To ECM |
