Remove Rear Over Fender (LH): Notes

WARNING: This page is about a different variant/trim than selected.

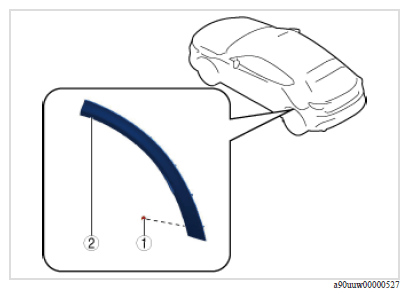

  1. Remove using the procedure shown in the figure below.
    • the figure below shows the left side (same as right side).
    G16703797Courtesy of MAZDA MOTORS CORP.
    PART NAME DESCRIPTION

    Step Part name
    1 Fastener
    2 Rear over fender
    (See Rear over fender removal note )
    (See Rear over fender installation note )
  2. Install in the reverse order of removal.
