Remove Passenger Side Rear Mudguard
WARNING: This page is about a different variant/trim than selected.

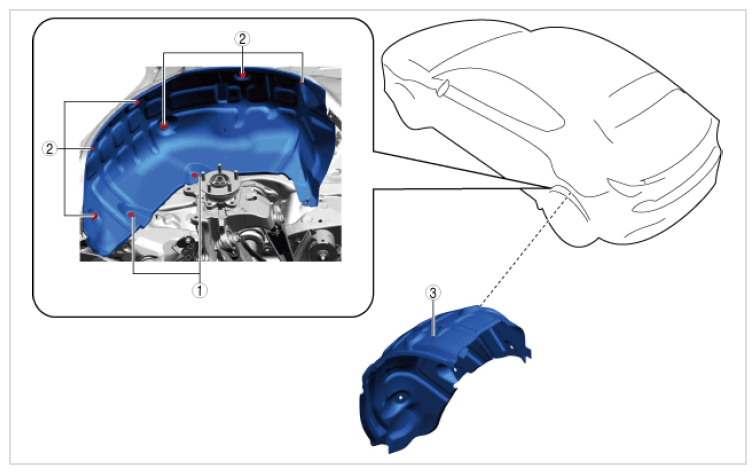

- Remove using the procedure shown in the figure below.
- the figure below shows the left side (same as right side).
 Courtesy of MAZDA MOTORS CORP.
|
PART NAME DESCRIPTION
| Step |
Part name |
| 1 |
Fastener |
| 2 |
Cap nut |
| 3 |
Rear mudguard |
