Water heater component removal note

WARNING: This page is about a different variant/trim than selected.

Disconnect the connectors.

Fig 1: Water Heater Component Nuts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the clips.

Remove the nut.

TIGHTENING TORQUE SPECIFICATIONS

Symbol	Content
	12.5 N.m {125 kgf.cm, 108 in.lbf}

Support the DC-DC converter using a commercially-available garage jack.

Courtesy of MAZDA MOTORS CORP.

Remove the bolts.

Fig 2: DC-DC Converter Bolts With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Symbol	Content
	9 N.m {93 kgf.cm, 81 in.lbf}

Disconnect the DC-DC converter.
Disconnect the high voltage battery cable (inverter side) as shown in the figure below.

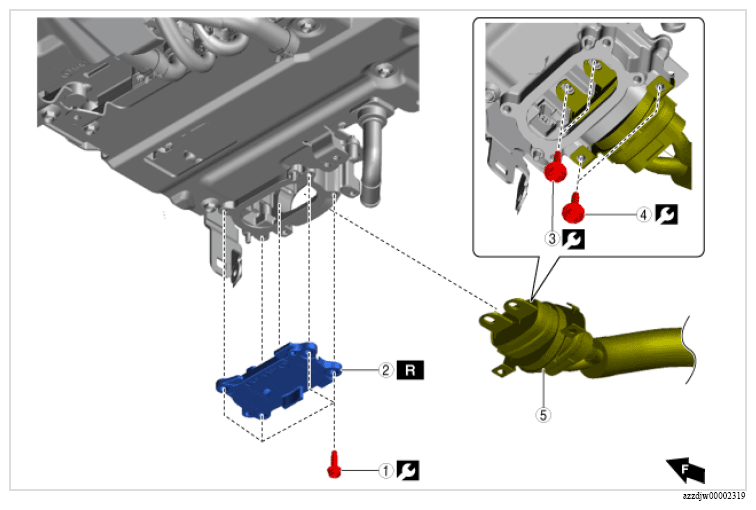

Fig 3: DC-DC Converter Bolts With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Symbol	Content
(1) (2)...	Servicing procedure
	11 N.m {110 kgf.cm, 95 in.lbf}
