Bolt, nut installation note

WARNING: This page is about a different variant/trim than selected.
  1. Install the bolts and nuts as shown in the figure below.

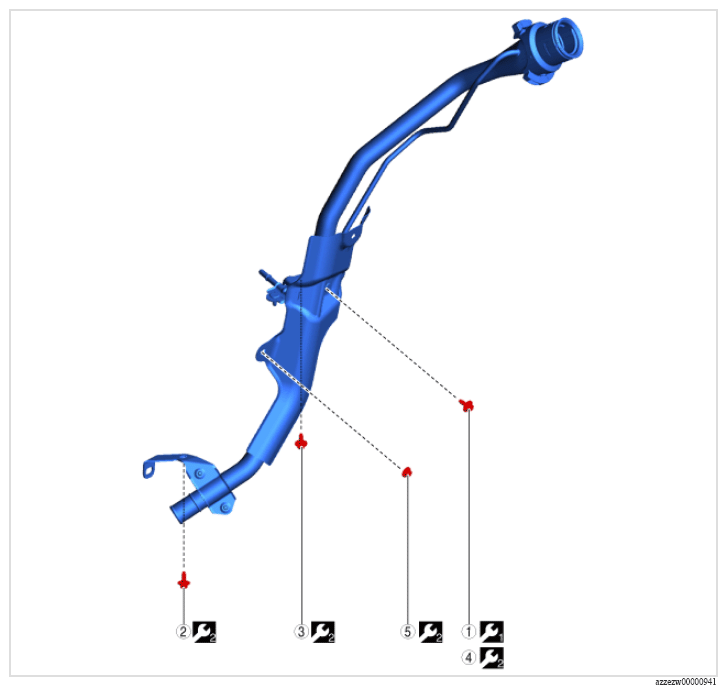

    Fig 1: Fuel-Filler Pipe Bolts And Nuts Tightening Sequence
    G16702473Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Symbol Content
(1) (2)... Servicing procedure
Temporarily tighten
11 N.m {110 kgf.cm, 95 in.lbf}
