Quick release connector (fuel system) No. 4 connection note: Notes

WARNING: This page is about a different variant/trim than selected.

NOTE:

If the quick release connector O-ring is damaged or it has slipped, replace the fuel hose.

Inspect the fuel hose and the sealing surface on the opposite side for damage or deformation.
- If there is any malfunction, perform replacement.

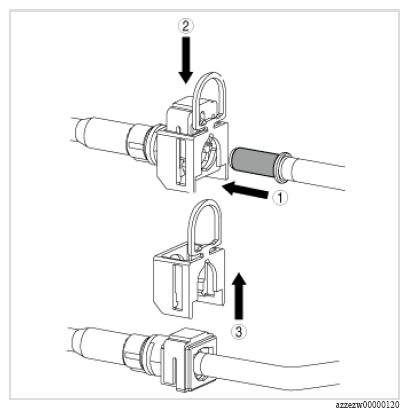

Install the quick release connector in the order shown in the figure below.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
(1) (2)...	Servicing procedure
	Engine oil application area
