Remove Third-row Seat Cushion: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • When performing the procedure with a third-row seat cushion removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.
  1. Remove in the order indicated in the table.

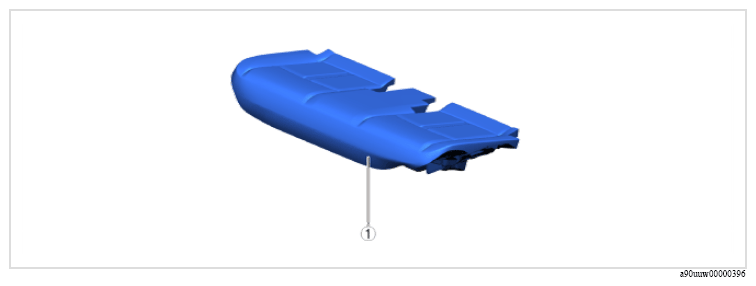

    G16702371Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Third-row seat cushion
(See Third-row seat cushion removal note ).
(See Third-row seat cushion installation note ).
