Back-up ring installation note
WARNING: This page is about a different variant/trim than selected.

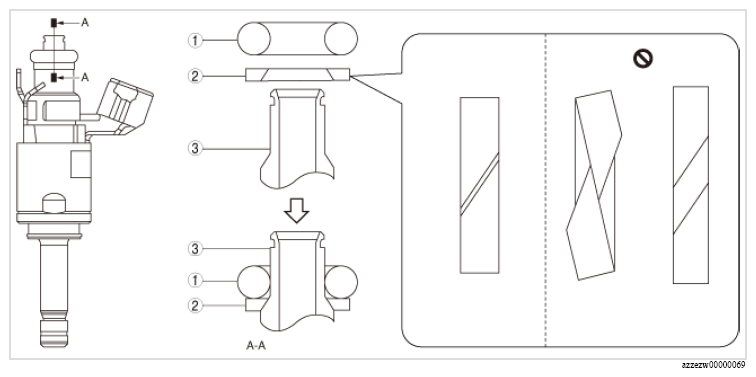

- Install the back-up rings as shown in the figure below, being careful of their orientation.
 Courtesy of MAZDA MOTORS CORP.
|
COMPONENT OPERATIONS
| Component No. |
Refer to |
| 1 |
O-ring |
| 2 |
Back-up ring |
| 3 |
Fuel injector |
