Rear seat cushion removal note

WARNING: This page is about a different variant/trim than selected.

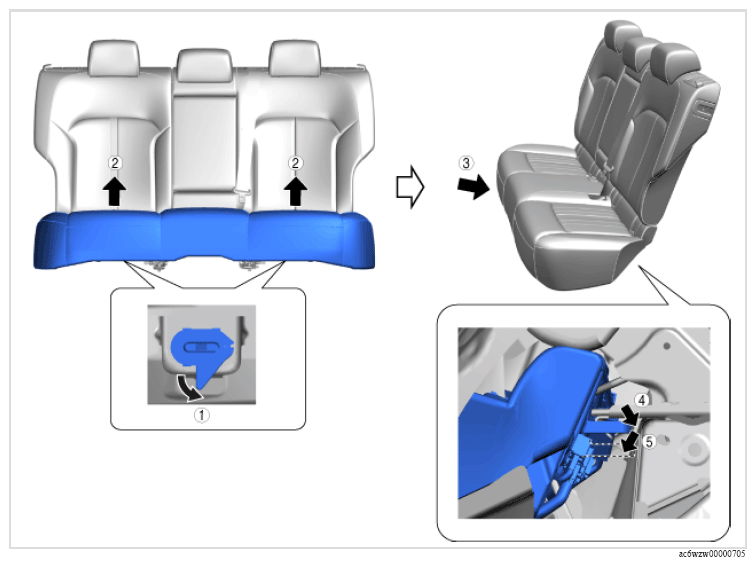

  1. Remove the rear seat cushion as shown in the figure below.
    G16702231Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    (1) (2)... Servicing procedure
