Remove Electric Variable Valve Timing Actuator: Notes

WARNING: This page is about a different variant/trim than selected.

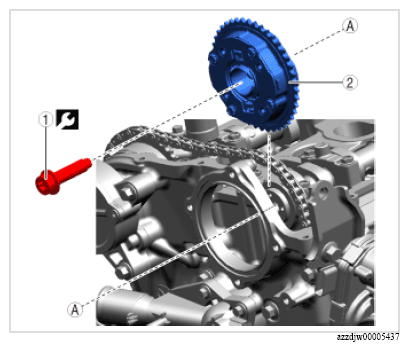

Fig 1: Electric Variable Valve Timing Actuator Bolt With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Bolt	108 N.m {11 kgf.m, 79.65 ft.lb}
2	Electric variable valve timing actuator (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR REMOVAL NOTE ) (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR INSTALLATION NOTE )	-
