Remove the engine front cover: Notes
WARNING: This page is about a different variant/trim than selected.

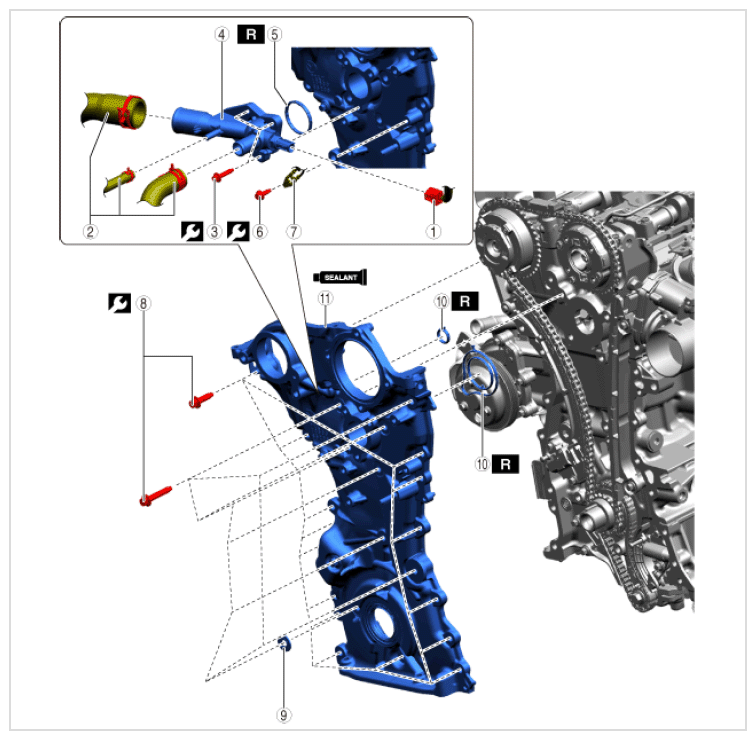

- Remove using the procedure shown in the figure below.
TIGHTENING TORQUE SPECIFICATIONS
| Procedure | Part name | Applicable condition | |||
|---|---|---|---|---|---|
| 1 | Coupler | Continuous | - | - | - |
| 2 | Hose | Continuous | - | - | - |
| 3 | Bolt | Continuous | - | - | 9.5 N.m {97 kgf.cm, 84 in.lb} |
| 4 | Water outlet | Continuous | - | - | - |
| 5 | Gasket | Continuous | - | Replacement part | - |
| 6 | Bolt | Continuous | - | - | 11 N.m {112 kgf.cm, 97 in.lb} |
| 7 | Ground | Continuous | - | - | - |
| 8 | Bolt | Continuous | - | - | 23 N.m {2.35 kgf.m, 16.95 ft.lb} |
| 9 | Washer | Continuous | - | - | - |
| 10 | Gasket | Continuous | - | Replacement part | - |
| 11 | Engine front cover (See ENGINE FRONT COVER INSTALLATION NOTE ) |
Continuous | TB1217D | - | - |
