Remove Tunnel Member: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

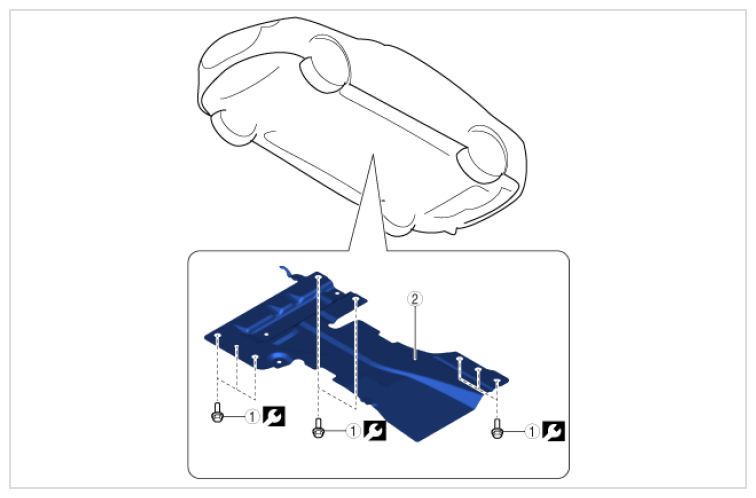

Fig 1: Tunnel Member Bolt With Torque Specifications
G16699882Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Bolt
(See Bolt installation note )		 22 N.m {2.25 kgf.m, 16.25 ft.lb}
2 Tunnel member -
