Remove Insulator (Middle No. 2): Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

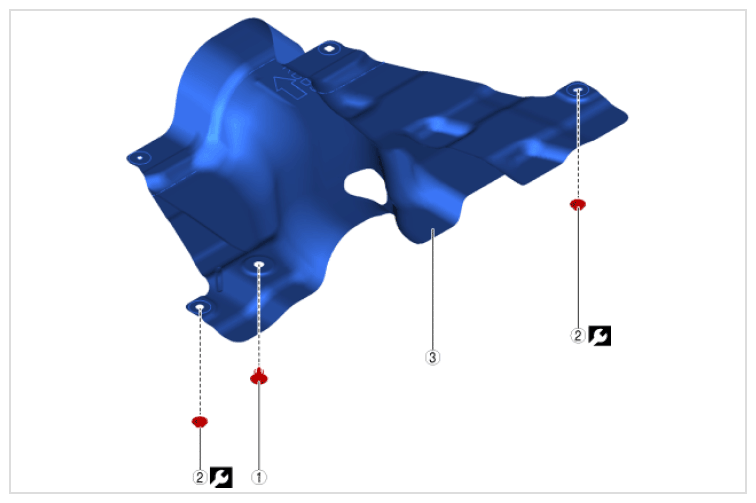

Fig 1: Insulator (Middle No. 2) Nut With Torque Specifications
G16699893Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Fastener -
2 Nut
(See Nut installation note )		 9.5 N.m {95 kgf.cm, 82 in.lb}
3 Insulator (middle No. 2)
(See Insulator (middle No. 2) installation note )		 -
