Fuel distributor installation note
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- If oil is applied to the fuel injectors, oil may adhere to the injection hole areas and interfere with the function of the fuel injectors. To prevent this, apply oil to the cylinder head side.

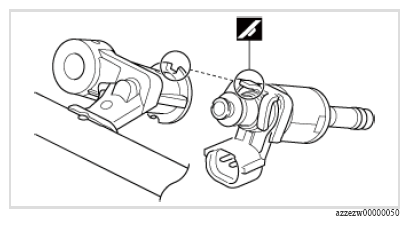

- While aligning the spacer projection with the fuel distributor notch, install the fuel distributor to the fuel injector.
