Remove Front Brake Disc: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove using the procedure shown in the figure below.

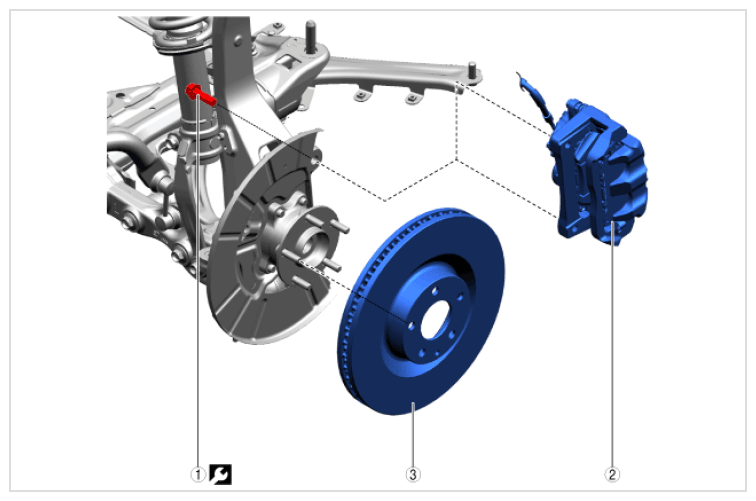

Fig 1: Front Brake Disc Bolt With Torque Specifications
G16699960Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Bolt 164 N.m {17 kgf.m, 121 ft.lb}
2 Front brake caliper component
(See Front brake caliper component removal note )
(See Front brake caliper component installation note )		 -
3 Disc plate -
