Remove Engine Evaporative Hose: Notes

WARNING: This page is about a different variant/trim than selected.

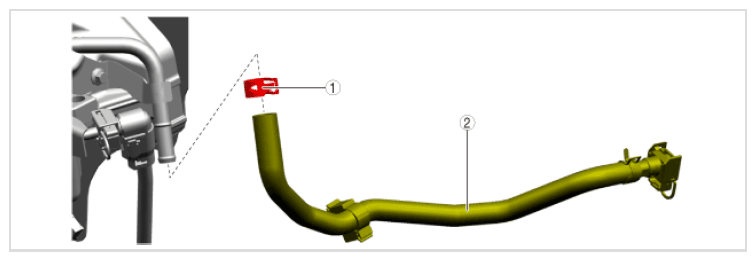

  1. Remove using the procedure shown in the figure below.
G16699958Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Procedure Part name
1 Clip
2 Engine evaporative hose
(See ENGINE EVAPORATIVE HOSE INSTALLATION NOTE )
