Remove Cylinder Head Cover: Notes
WARNING: This page is about a different variant/trim than selected.

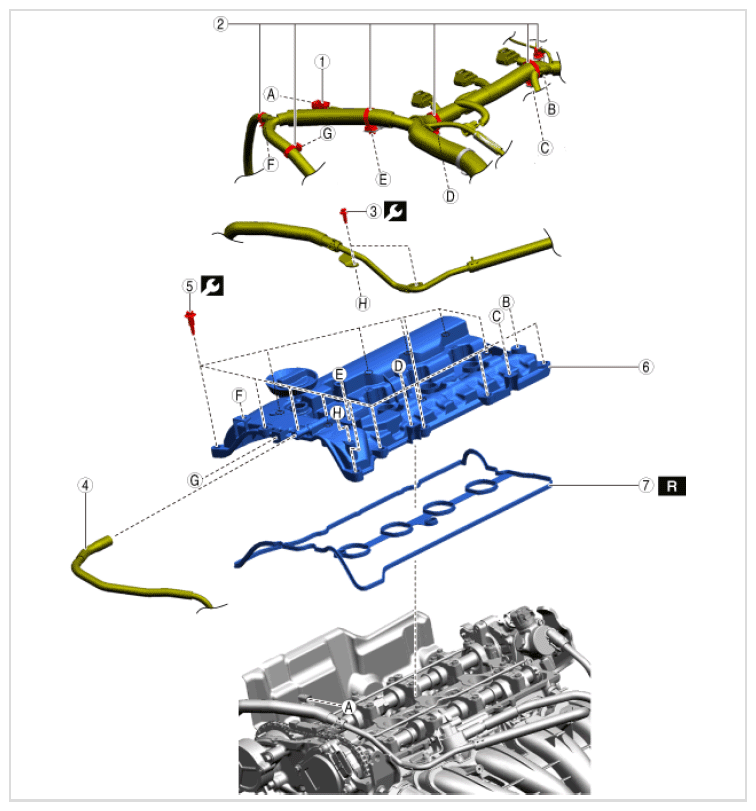

- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATIONS
| Step | Part name | ||
|---|---|---|---|
| 1 | Connector | - | - |
| 2 | Wiring harness clip | - | - |
| 3 | Bolt | - | 9.5 N.m {97 kgf.cm, 84 in.lb} |
| 4 | Ventilation hose | - | - |
| 5 | Bolt | - | 6.5 N.m {66 kgf.cm, 58 in.lb} |
| 6 | Cylinder head cover (See Cylinder Head Cover Installation Note ) |
- | - |
| 7 | Gasket | Replacement part | - |
