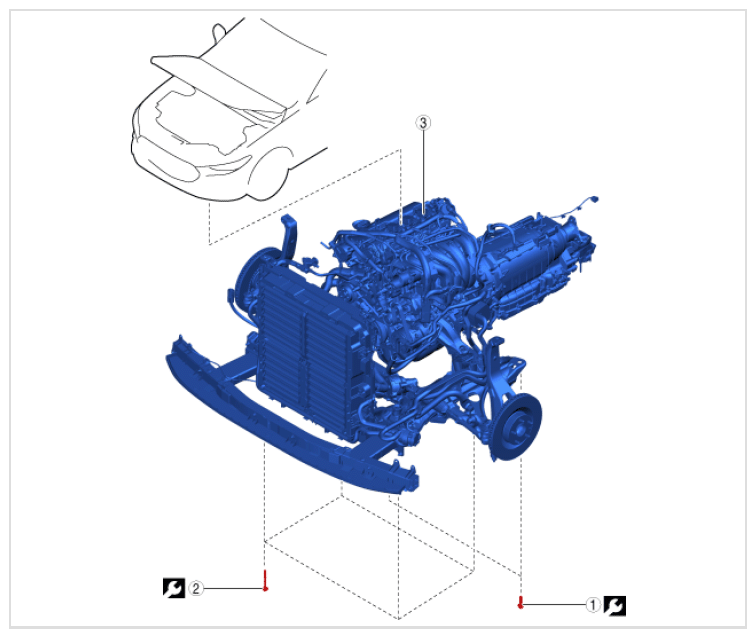

Lower Engine Component
WARNING: This page is about a different variant/trim than selected.
- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP. TIGHTENING TORQUE SPECIFICATIONS
| Step |
Part name |
 |
| 1 |
Bolt |
210.5 N.m {21.45 kgf.m, 155.1 ft.lb} |
| 2 |
Bolt |
83 N.m {8.45 kgf.m, 61.05 ft.lb} |
| 3 |
Engine component |
- |
