Install Engine Stand

WARNING: This page is about a different variant/trim than selected.

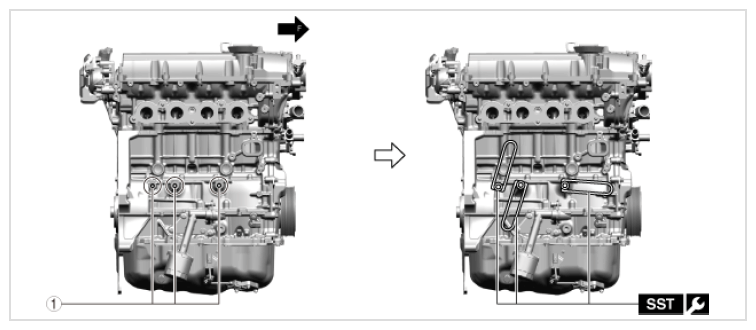

  1. Position the SST at the three locations shown in the figure below, and temporarily tighten using bolts (Part number: 9YA20-1003, or M10x1.5 Underneck 90 mm {3.5 in}).
    G16699984Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    1 SST installation hole
    Temporarily tighten
    49 L010 102
  2. Install the SST at the three locations shown in the figure below.
    G16699614Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    49 L010 101
    49 L010 104
    49 L010 105
  3. Install the SST using the procedure shown in the figure below.
    G16699615Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    1 Engine side
    2 PARALLEL
    49 L010 101
    49 L010 102
    49 L010 104
    49 L010 105
    49 L010 103
    20 mm {0.79 in}
    1. Install the SST (bolt, nut and plate) on the set SST (arm) using SST (hook and nut).
    2. Adjust by turning the bolt so that the threads of the SST (bolt) protrude approx. 20 mm {0.79 in} from the plate end.
    3. Adjust the SST (plate and arm) using bolts and nuts so that they are parallel to each other.
    4. Completely tighten all the bolts and nuts.
  4. Install on the SST (engine stand).
