Remove MAP sensor/IAT sensor No. 2

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

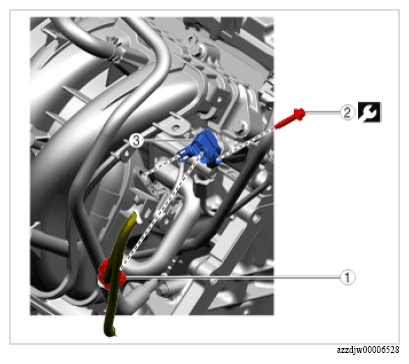

Fig 1: MAP Sensor/IAT Sensor No. 2 Bolt With Torque Specifications
G16707698Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Connector -
2 Bolt 9.5 N.m {97 kgf.cm, 84 in.lbf}
3 MAP sensor/IAT sensor No. 2 -
