Heater hose installation note

WARNING: This page is about a different variant/trim than selected.

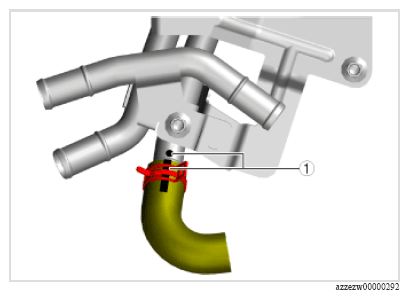

  1. Connect the heater hose as shown in the figure below.
G16699268Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
1 White Marking
