Remove Passenger's Side Seal Plate: Notes

WARNING: This page is about a different variant/trim than selected.

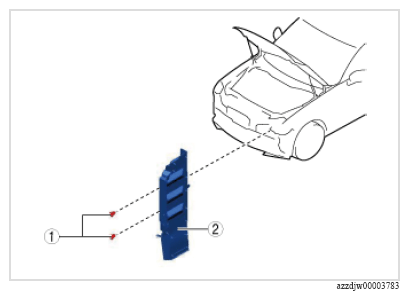

  1. Remove using the procedure shown in the figure below.
    • the figure below shows the left side (same as right side).
G16699239Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Fasteners
2 Seal plate
(See Passenger's Side seal plate installation note ).
